Customization Scope

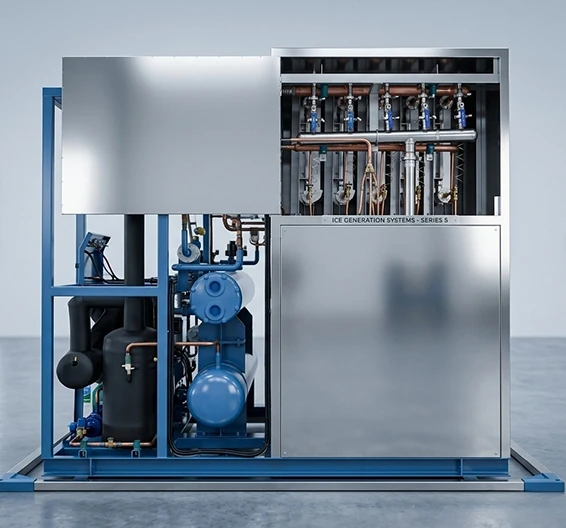

CUSTOMIZATION OF CORE REFRIGERATION SYSTEM

Industrial customers are very sensitive to the brand and energy efficiency of spare parts, and showcasing system level customization can demonstrate professionalism.

Compressor Brand Customization

We offer top brand choices such as Bitzer, Copeland, Danfoss, or Frascold.
Customization Of Condensation Method

Air cooled: Suitable for areas with scarce water resources. Water cooled: suitable for high temperature environments, with higher efficiency. Evaporative Cooling: Suitable for large industrial systems.
Environmentally Friendly Refrigerants

optional R404A, R507A, etc

MODEL-SPECIFIC CUSTOMIZATION

Model	Common Customization Scope
Cube Ice Machine	Ice‑cube size: standard 222222 mm or adjusted to match specific beverage requirements; daily output ranges from 1 ton to 20 tons.

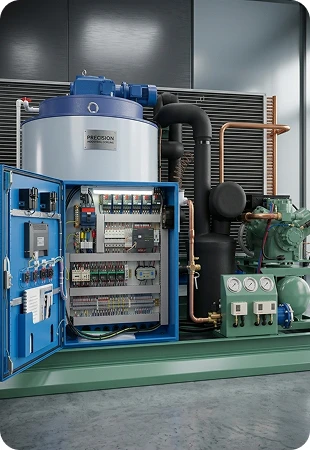

Flake Ice Machine	Application options: freshwater flake ice or seawater‑resistant flake‑ice version; Materials: Evaporator inner wall available in SS304 or corrosion‑resistant SS316 stainless steel.

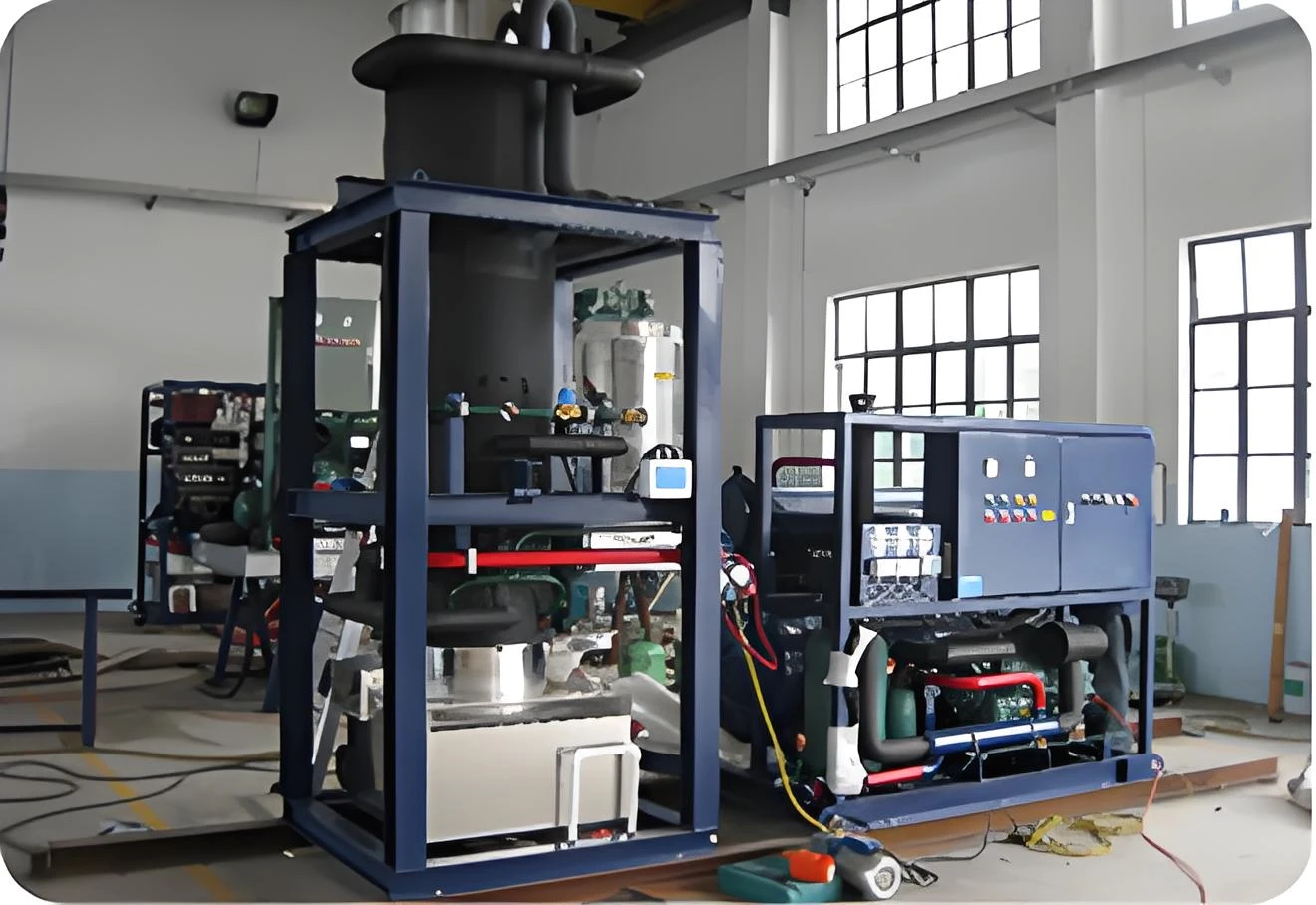

Tube Ice Machine	Available diameters: 22mm, 28mm, 35mm etc. Ice‑cut length can be adjusted.
Block Ice Machine	Ice‑making modes: brine‑type (cost‑effective) or direct‑cooling type with full‑aluminum‑plate evaporator for higher hygiene; single‑block weight: 5kg‑100kg.

STRUCTUpAL & INTEGRATION

Integrated vs. Split Design

If the room space is limited, the main unit and the condenser can be installed separately.
Containerized System

The entire system (ice-making + cold storage + control) is integrated into a 20-foot or 40-foot container, enabling "plug-and-play" functionality and is suitable for remote areas or mobile projects.
Ice Storage And Conveying System

Customize ice storage bins of different capacities, and equip them with automatic screw conveyors or pneumatic conveying systems.

SMART CONTROL & ELECTRIC

1

Voltage/frequency adaptation

Adapt to global voltages (such as 220V/380V/440V, 50Hz/60Hz).
2

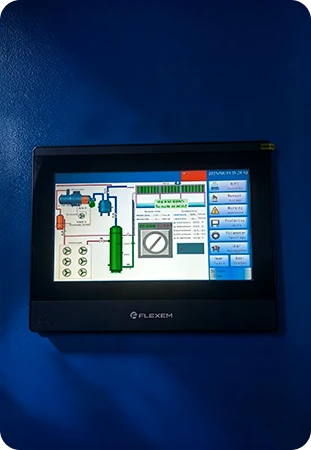

PLC control system

Uses Siemens or Schneider touch screens, supporting language switching.
3

Remote Monitoring

Incorporate Wi-Fi/4G modules, allowing customers to monitor the operating status and perform fault diagnosis in real time via mobile phones or computers.

FAQ

Shanghai Kendall Group (Kendall) is an integrated enterprise combining R&D, manufacturing, engineering, and global trade. Since our establishment, we have consistently focused on industrial-grade ice making equipment and large-scale cold storage projects, backed by over 20 years of industry experience.

01
Can you provide machines with specific voltages and frequencies?

Of course. We understand the differences in global industrial power grids and can customize power specifications to your requirements, such as 220V/380V/440V and 50Hz or 60Hz , to ensure that your equipment is ready to use upon arrival.
02
Are your ice cubes the same size?

We offer a variety of standard sizes; for example, our standard ice cubes are 22 *22 * 22mm by default. If you have specific requirements, we can adjust the mold or ice-cutting mechanism to meet your specific ice cube size needs.
03
Can we choose the brand of core components?

No problem. Our standard configuration uses top international brands (such as Bitzer compressors and Danfoss control components). If you have a list of preferred suppliers, our design team can adapt the system to your requirements.
04
Do you have a solution if I have limited installation space?

We can provide split designs or compact structural designs. Furthermore, we specialize in containerized ice plants , integrating ice making, ice storage, and control systems all within a 20-foot or 40-foot container, significantly saving on-site space and installation time.
05
Can the machine operate stably in tropical or high-salt-fog areas (such as the seaside)?

For high-temperature environments, we recommend using water-cooled or evaporative cooling systems; for coastal environments, we will treat the condenser with anti-corrosion measures or use evaporators made of SS316 stainless steel to ensure the long-term durability of the equipment.
06
Is the machine's daily output greatly affected by the environment?

The output of all industrial ice makers is affected by inlet water temperature and ambient temperature. We provide output reference tables for different operating conditions. Through customized enhanced refrigeration systems, we can ensure that the machine achieves its expected rated ice production in your local environment.
07
Do you support OEM or de-branding production?

Supported. For distributors and engineering partners, we can remove the original logo or affix your branding upon request, and provide neutral technical specifications and packaging.
08
How do I install it after receiving the goods? Do you provide on-site support?

Each machine undergoes rigorous testing before leaving the factory. We provide a detailed English installation manual and video tutorials with each shipment. For large systems, we can dispatch engineers for on-site commissioning or provide remote technical guidance via real-time video.
09
Are your industrial ice makers noisy when they run? How do you control the noise?

The noise from industrial ice makers primarily comes from the compressor, condenser fan, and water pump. Our standard units maintain industrial-safe noise levels (typically 70-80 dB). For noise-sensitive installation environments, we offer the following customized noise reduction solutions: Compressor Acoustic Blankets, Low-speed, high-efficiency fan, Remote Condenser Installation, Vibration damping base
10
Will our groundwater/seawater clog the system? Is the ice clear enough?

We can customize an integrated water filtration system (such as RO reverse osmosis or multi-media filter) based on your source water report . For ice cube machines, we can equip them with an automatic drain function, which effectively reduces scale formation and ensures that the ice cubes are crystal clear and meet food-grade standards.

11
Which parts are prone to failure? Can you ship them quickly?

We will include some easily damaged spare parts randomly . Since our core components use internationally recognized brands such as Bitzer, Danfoss, and Schneider, you can easily purchase replacement parts in your local market. If you need them shipped, we will send them as soon as possible.

Our Advantage

WHY CHOOSE US

20+ Years of Industry Focus

Focusing on industrial ice making and cold storage engineering, with profound technical accumulation
Integrated R&D Manufacturing

Integrated industry and trade, with full process self-control from research and development design to manufacturing and delivery
Full Product Range

All series of ice machines are fully covered, with a daily output of 1 ton to 100 tons+
Custom Engineering Solutions

OEM/ODM customization, non-standard design, suitable for customers in different industries around the world
End-to-End Project Delivery

From custom ice plants to cold storage engineering, we provide turnkey, one-stop solutions encompassing design, manufacturing, installation, and commissioning.
Global Supply & Service

Exporting high-quality ice systems globally, providing reliable support and tailored solutions for international customers.

NEED A CUSTOMIZED SOLUTION?

For industries such as concrete cooling, chemical reaction cooling, food processing, fishery preservation, mine cooling, textile printing and dyeing, and biomedicine, we provide exclusive customized solutions and equipment based on their unique needs and specific problems.
