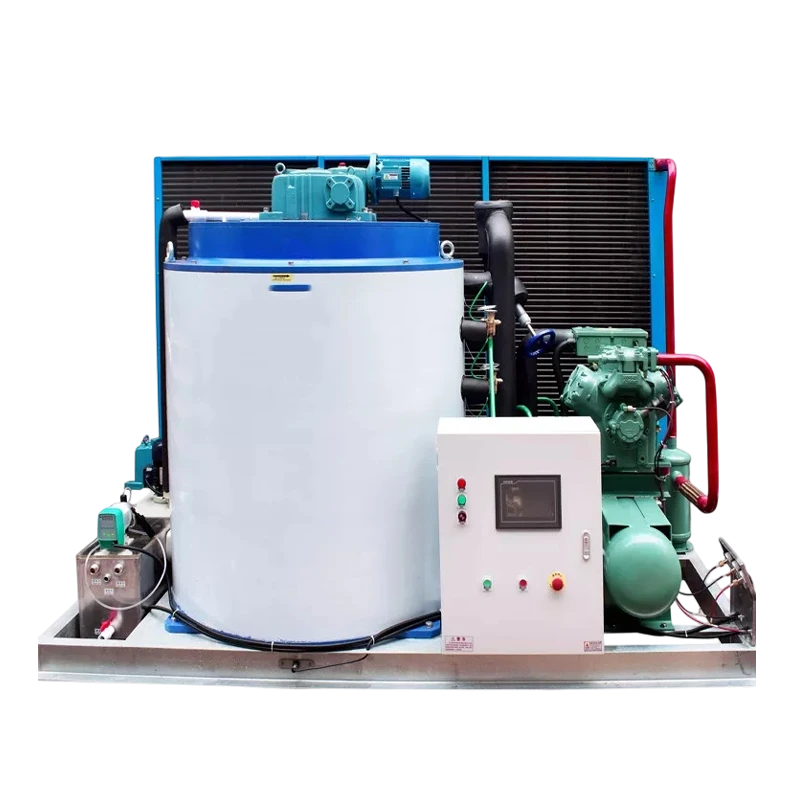

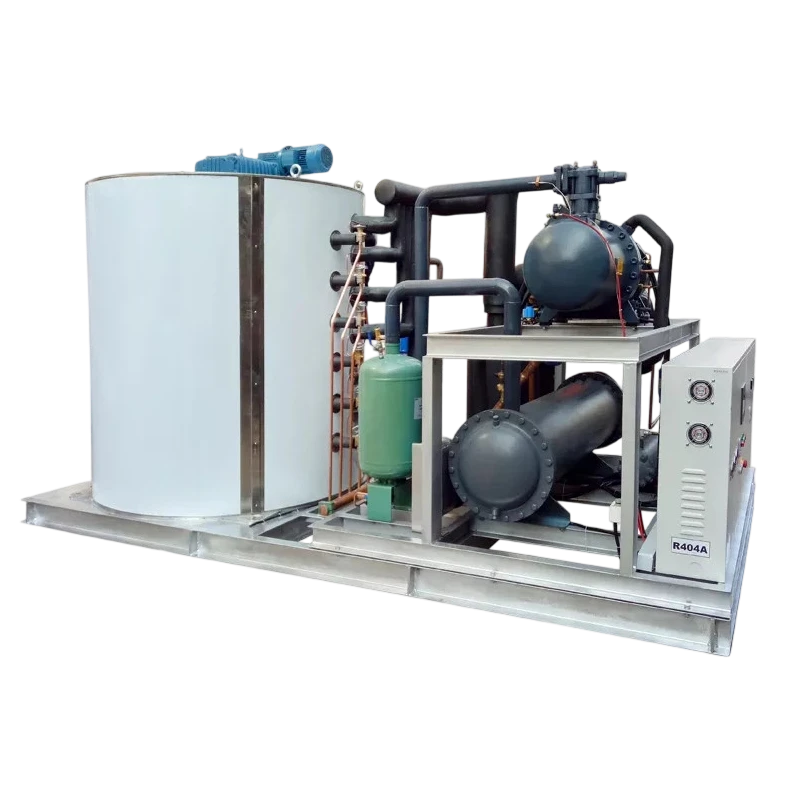

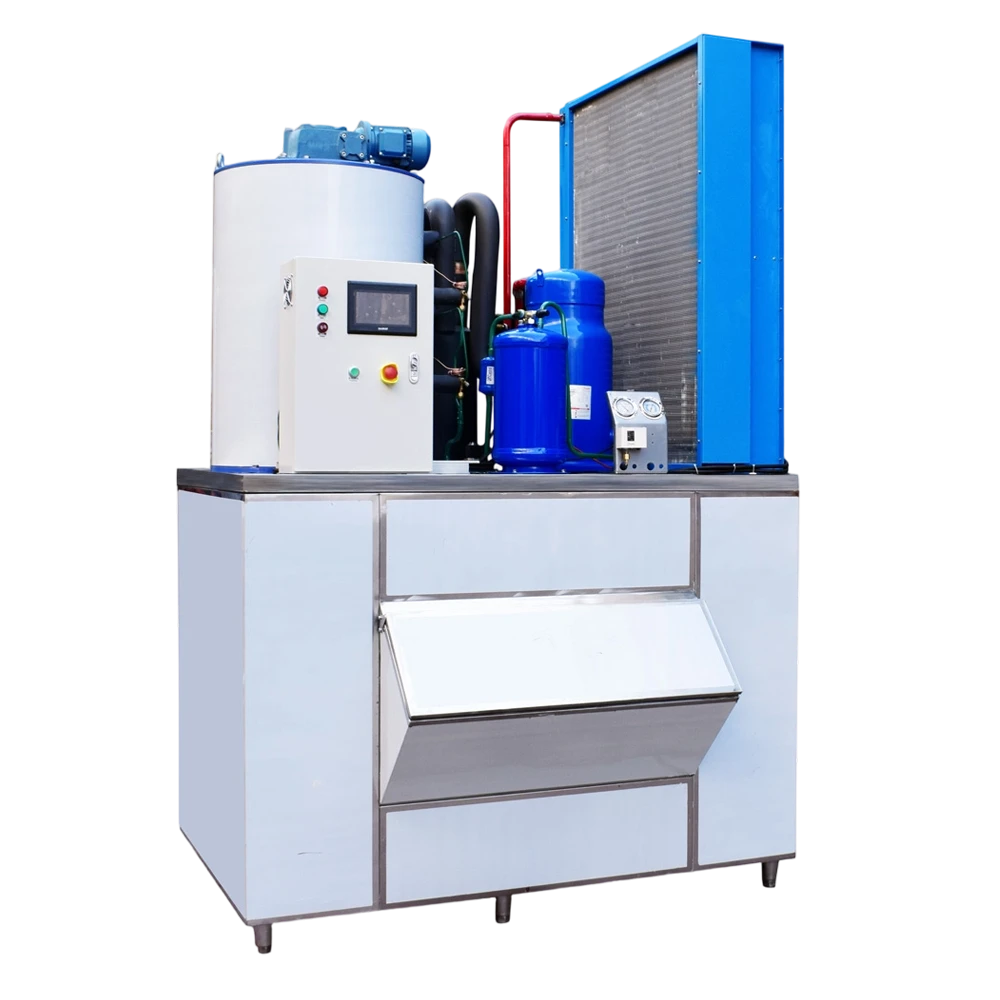

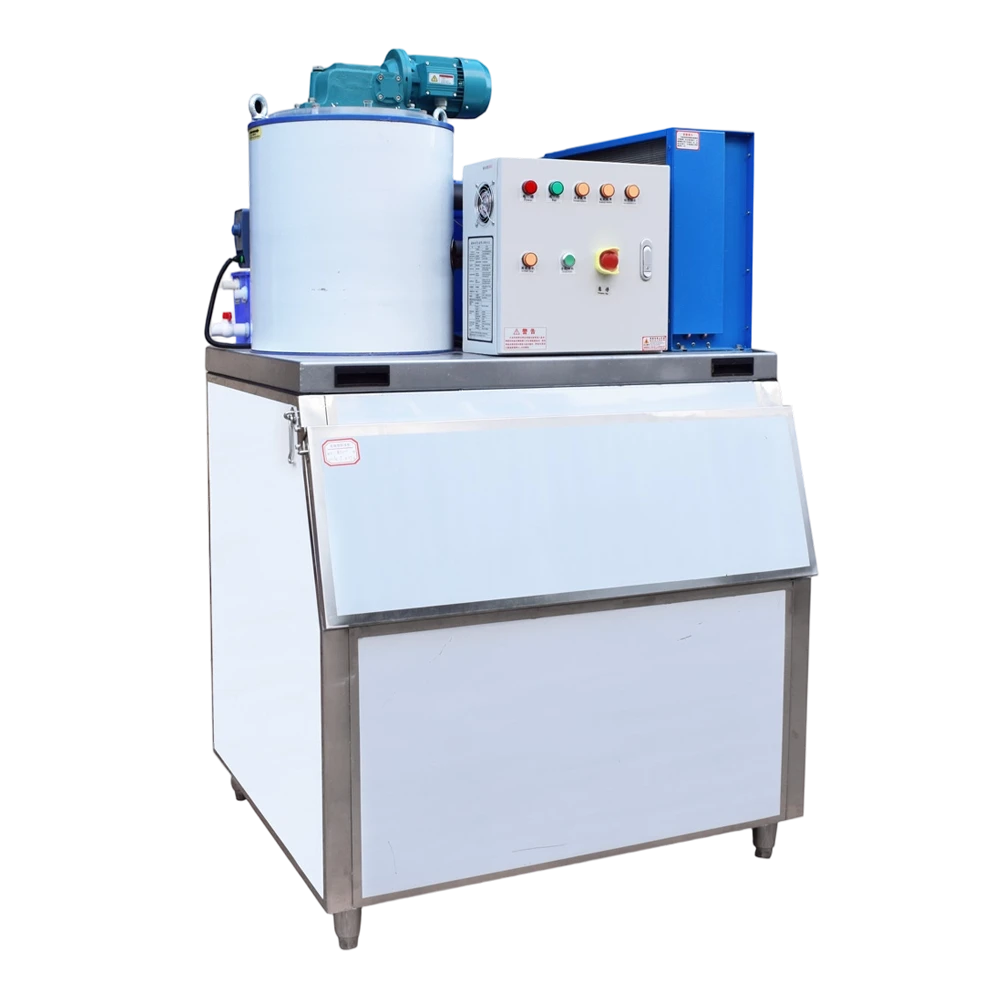

1 to 30ton Industrial Flake Ice Machine

Based on 20 years of experience, the ice machines produced by Kendall operate stably, are environmentally friendly, have superior performance, and can provide customized services. Bringing immeasurable benefits to our customers. Kendall ice machines are widely applied in supermarket chains, hotels, seafood market, food processing and vegetable preservation industries,etc.

Flake Ice irregular, thin scale shape ice at the size of around 40x40mm, thickness is between 1. 5~ 2. 5mm.

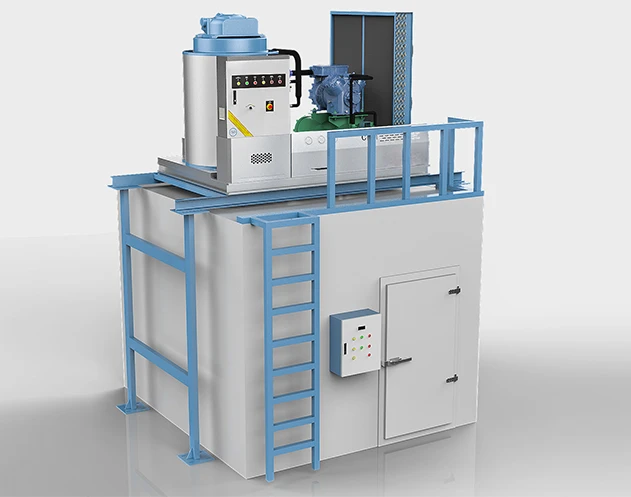

A complete ice machine production and storage system with a capacity of over 4 tons includes: ice machine head, ice storage room, and support frame

Inquire Now

THE MAIN ELEMENTS

Ice maker head, producing flake ice
Compressor

Condenser
Thermal expansion valve

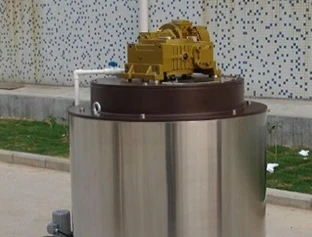

Ice bucket, evaporator

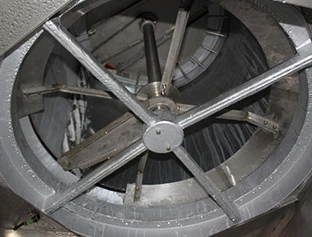

Internal structure of ice bucket

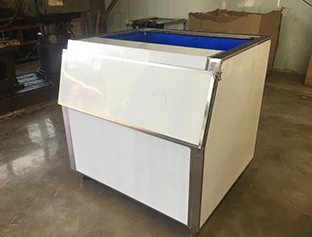

Ice bin, ice storage
ice scoop

Spiral ice skate assembly

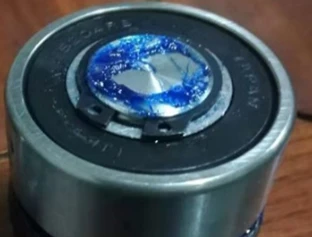

Axis component

Our ice maker produces ice flake with the following characteristics

High transparency

Uniform density

Rapid cooling

No or minimal odor

Slow melting

PRODUCT SPECIFICATIONS

The model of the flake ice maker


24h CAPACITY	STORAGE	VOLTAGE/POWER	COOLING WAY	MACHINE SIZE
1500kg	400kg	380V/7.1KW	Air/Water-cooled	1370×1030×2135
2000kg	500kg	380V/8.5KW	Air/Water-cooled	1440×1200×2250
2500kg	800kg	380V/9.6KW	Air/Water-cooled	1640×1420×2350
3000kg	1200kg	380V/11KWA/W	Air/Water-cooled	1740×1535X2600


24h CAPACITY	STORAGE	VOLTAGE/POWER	COOLING WAY	MACHINE SIZE
4T	870kg	380V/15.7KW	Air/Water-cooled	1500×1200×1200
5T	960kg	380V/19.5KW	Air/Water-cooled	2070×1650×1470
6T	960kg	380V/22.5KW	Air/Water-cooled	2070×1650×1470
8T	1670kg	380V/26.6KW	Air/Water-cooled	2330×1890×1630
10T	2250kg	380V/44.3KW	Air/Water-cooled	2500×1900×1890
12T	2680kg	380V/45.5KW	Air/Water-cooled	2500×1900×2130

Application of flake ice machine

Seafood processing

The ice flake is used to quickly cool and preserve seafood, maintaining its freshness and taste.

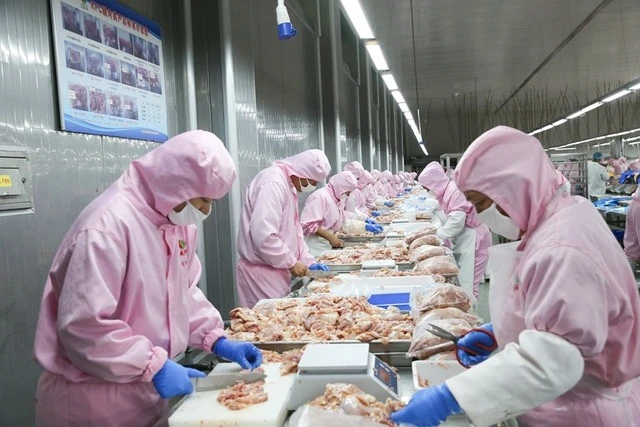

Meat processing

Used to cool and preserve meat, extending its shelf life.

Pastry Baking

Used to cool pastries and chocolate and other foods, maintaining their shape and taste.

Other applications

Vegetable and fruit preservation in logistics distribution processes, chemical factories, concrete mixing, etc

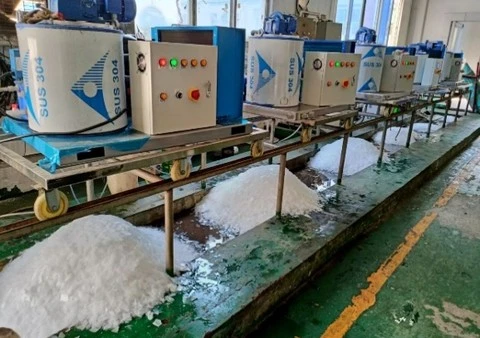

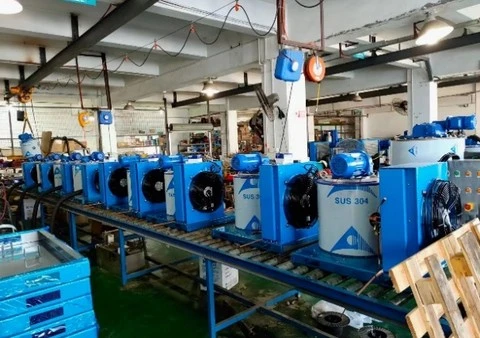

Factory Equipment

EQUIPMENT STRENGTH

CASE

With a proven track record of engineering excellence, Kendall has delivered high-efficiency industrial ice systems and cold chain solutions to clients worldwide. Explore our featured case studies demonstrating custom engineering and uncompromising reliability.

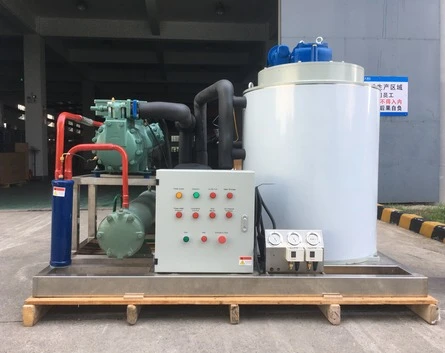

5-ton water-cooled flake ice machine to Tanzania

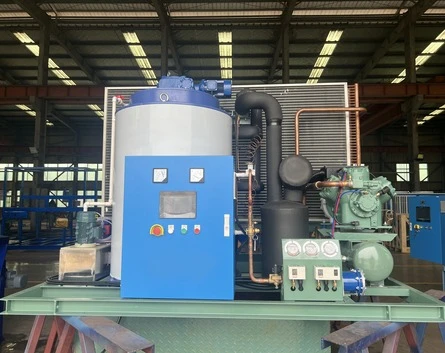

4 sets of 20 ton flake ice machines and target ice storage to Mexico

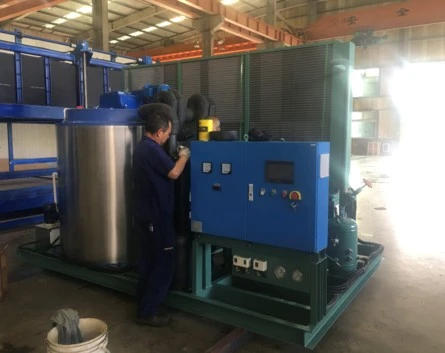

5-ton air-cooled flake ice machine to Oman

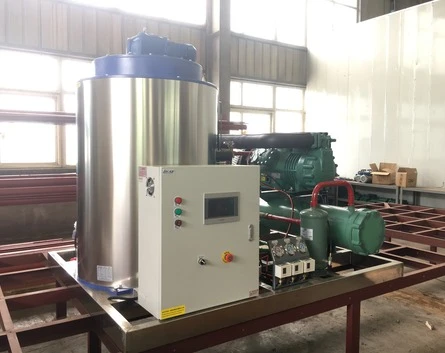

10 ton air-cooled flake ice machine to Russia

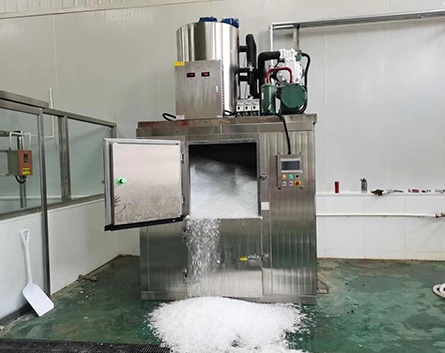

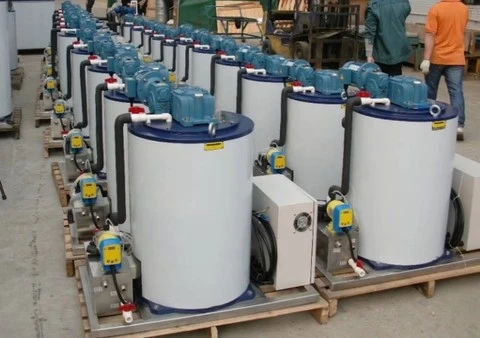

Various customized flake ice machines+ice storage to various countries

Our Advantage

WHY CHOOSE US

20+ Years of Industry Focus

Focusing on industrial ice making and cold storage engineering, with profound technical accumulation
Integrated R&D Manufacturing

Integrated industry and trade, with full process self-control from research and development design to manufacturing and delivery
Full Product Range

All series of ice machines are fully covered, with a daily output of 1 ton to 100 tons+
Custom Engineering Solutions

OEM/ODM customization, non-standard design, suitable for customers in different industries around the world
End-to-End Project Delivery

From custom ice plants to cold storage engineering, we provide turnkey, one-stop solutions encompassing design, manufacturing, installation, and commissioning.
Global Supply & Service

Exporting high-quality ice systems globally, providing reliable support and tailored solutions for international customers.

NEED A CUSTOMIZED SOLUTION?

For industries such as concrete cooling, chemical reaction cooling, food processing, fishery preservation, mine cooling, textile printing and dyeing, and biomedicine, we provide exclusive customized solutions and equipment based on their unique needs and specific problems.

Customize now
